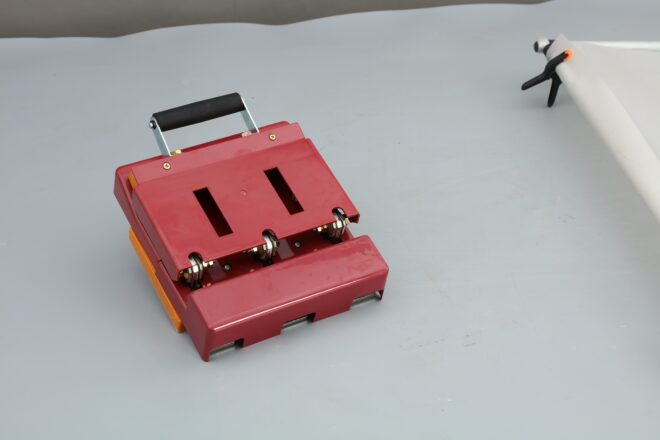

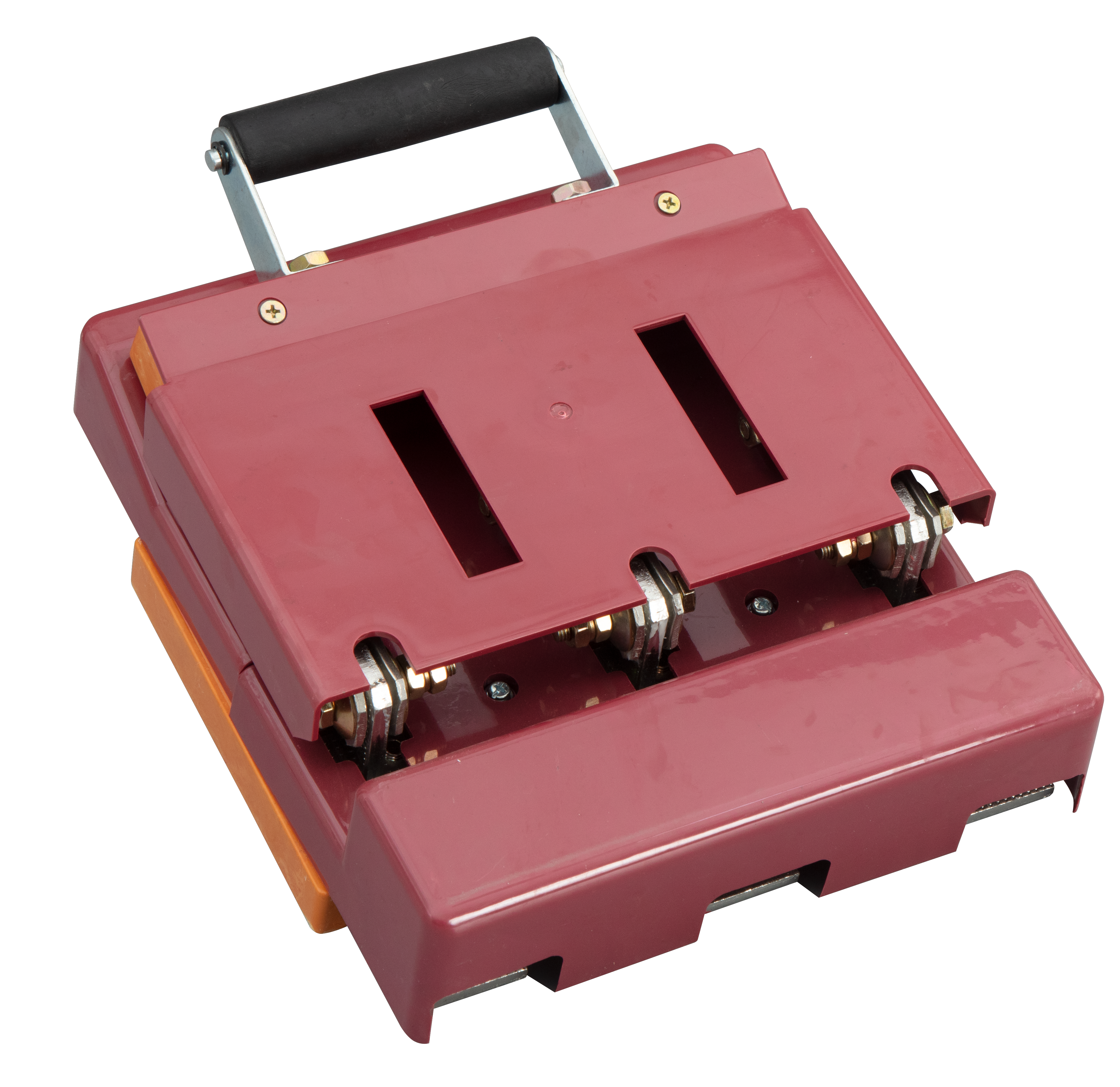

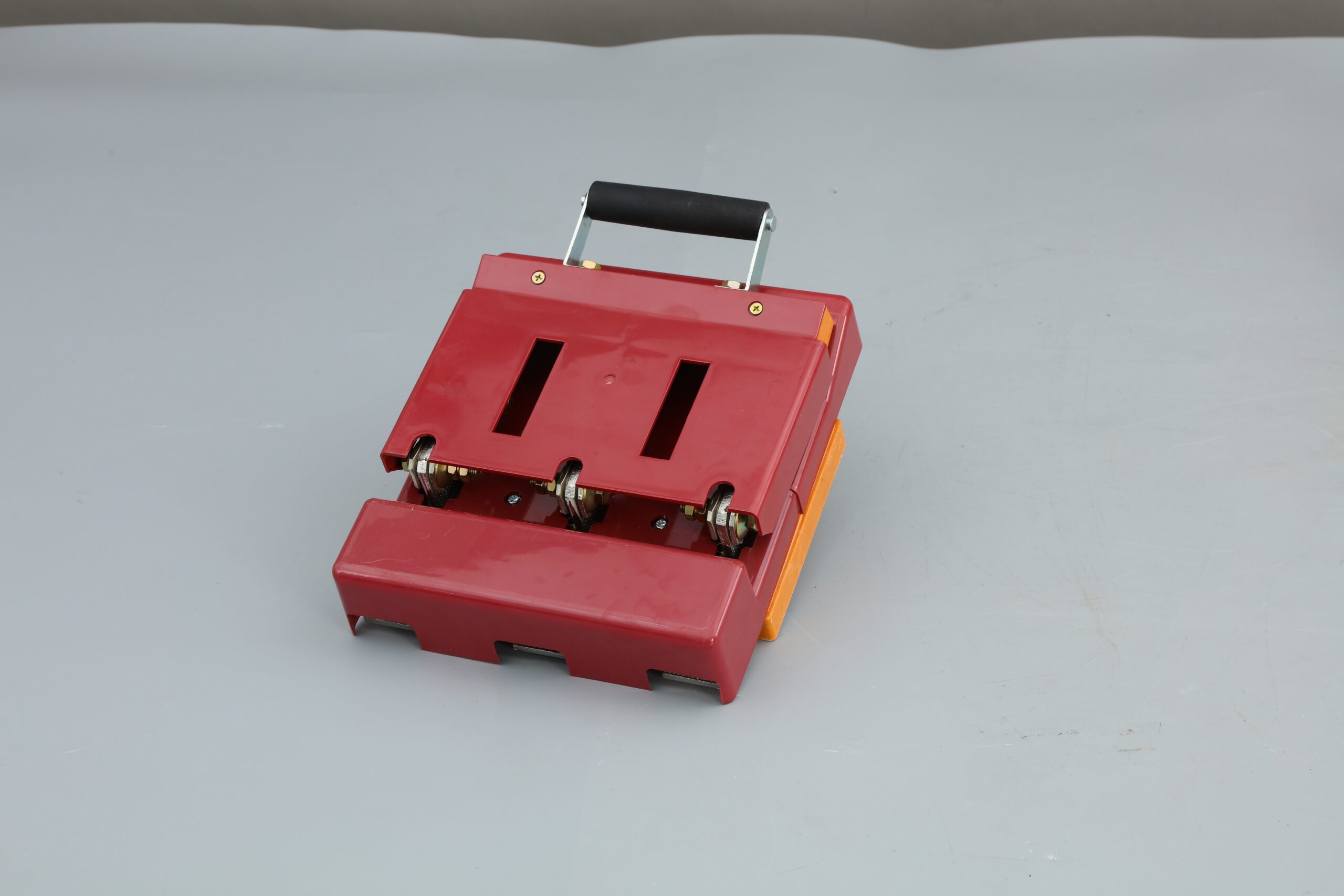

HD11F series isolator is suitable for the equipment with rated voltage up to AC690 (50Hz) and resistive current up to 1600A.
This product is primarily used for isolation of power supply in the power distribution equipment in the industrial enterprise.
Working environment conditions:
1.1 Ambient air temperature: -5℃~+40℃.
1.2 Altitude: not exceed 2,000 meters.
1.3 Humidity: The relative air humidity does not exceed 50% at the maximum temperature +40℃. A higher
relative humidity is allowed at a lower temperature, such as up to 90% at 20℃. Special measures are taken for condensation occurred occasionally due to temperature changes.
1.4 Pollution degree: 3.
1.5 The switch shall be vertically installed in places where there is no obvious shaking, impact vibration or rain and snow erosion and no explosive and hazardous medium, and there is no enough gas and dust to cause metal corrosion and insulation damage in medium.
Basic Parameters | |||||
Resistive current Ith(A) | 250 | 400 | 630 | 1000 | 1600 |
Rated insulation voltage Ui(V) | 1000 | ||||
Rated working voltage Ue(v) | 415/690 | ||||
Usage category | AC-20A | ||||
Rated working current Ie(A) | 200 250 | 400 | 600 630 | 1000 | 1500 1600 |
Rated short-time withstand current (kA/s) | 10 | 15 | 20 | 25 | 30 |
Mechanical life (times) | 8,000 | 5,000 | 5,000 | 3,000 | 3,000 |
Aux. contact Ith(A) AC-15 | 0.8 |
