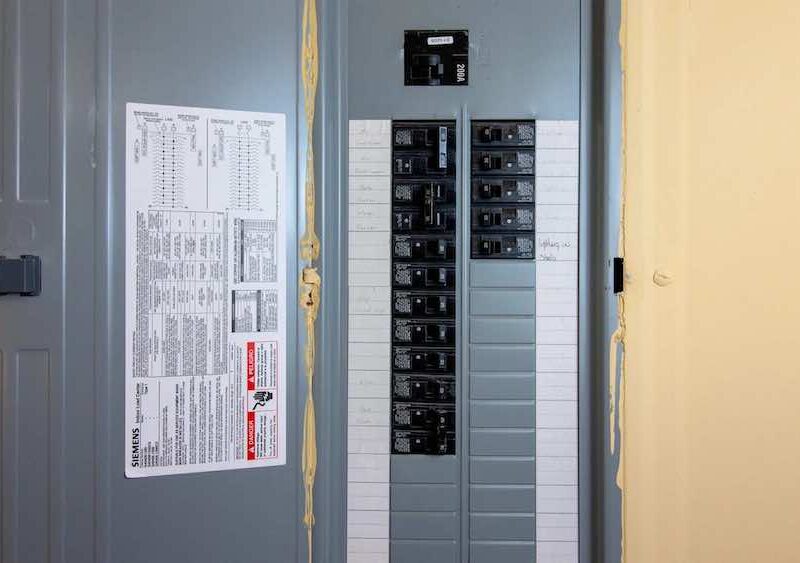

A Comprehensive Guide to Electrical Panel Installation and Maintenance
The electrical panel is the heart of any building’s electrical system, distributing power efficiently while ensuring safety. Whether it’s the main panel or a distribution panel, proper installation and maintenance are critical to preventing electrical hazards and optimizing performance. A well-installed and well-maintained electrical panel not only improves efficiency but also enhances safety, preventing potential risks such as overloaded circuits, faulty wiring, and electrical fires.
This guide will walk you through the key aspects of electrical panel installation, from selecting the right panel to performing routine maintenance, ensuring your system remains safe and fully functional.
1. Understanding Electrical Panel Components
A thorough understanding of an electrical panel’s components is essential for safe installation and maintenance. Below are the key elements:
- Main Circuit Breaker (or Main Switch): Controls the entire power supply to the panel, allowing power to be turned off during maintenance or emergencies.
- Service Entrance Wires: The main power lines delivering electricity from the utility company to the panel.
- Circuit Breakers or Fuses: Protect circuits by shutting off power when excessive current is detected, preventing overloads.
- Busbars: Metal strips that distribute power from the main breaker to individual circuit breakers.
- Neutral and Ground Wires: Provide a return path for electrical current and enhance safety by preventing shocks.
- Panel Cover and Enclosure: Protects internal components from dust, dirt, and accidental contact.
- Surge Protectors: Safeguard electrical systems from sudden voltage spikes that could damage appliances.
2. Pre-Installation Considerations
Before installing an electrical panel, it’s important to assess the building’s electrical requirements and check for potential issues such as:
- Flickering lights or frequent breaker trips, which may indicate overloaded circuits or an aging panel.
- Burning smells near the panel, which could signal faulty wiring or overheating.
If you identify any of these warning signs, replacing the panel is advisable. When planning the installation, ensure compliance with local electrical codes and choose a location that is:
✔ Well-ventilated and dry
✔ Free from heat sources and flammable materials
✔ Easily accessible for maintenance
Additionally, consider future electrical needs when selecting a panel to allow for future expansions and energy-efficient solutions.
3. Choosing the Right Electrical Panel
Selecting the appropriate panel is crucial for efficient power distribution. Here are the key factors to consider:
- Capacity: Choose a panel with sufficient capacity to handle the current and future electrical load.
- Number of Circuits: Ensure the panel can accommodate the required number of circuits, including potential future additions.
- Panel Type:
- Main Breaker Panel: Includes a built-in main breaker, ideal for residential use.
- Main Lug Panel: Requires an upstream main breaker, commonly used in commercial and industrial settings.
- Brand & Quality: Opt for a reputable brand that meets safety standards. Consulting an electrician or checking reviews can help make an informed decision.
If you’re unsure about choosing the right panel, seek guidance from a licensed electrician.
4. Essential Tools and Materials
Gathering the right tools and materials before starting the installation ensures a smooth workflow.
Required Items:
✔ Circuit Breaker Panel – The main distribution unit
✔ Circuit Breakers – To regulate individual circuits
✔ Electrical Wires – Ensure the correct gauge is used
✔ Wire Connectors – Secure electrical connections
✔ Wire Strippers and Cutters – For preparing wires
✔ Screwdrivers and Drill – For panel and component installation
✔ Labeling Materials – To mark circuits for easy identification
✔ Tape Measure & Level – Ensures precise positioning
✔ Personal Protective Equipment (PPE) – Safety glasses, insulated gloves, etc.
5. Step-by-Step Electrical Panel Installation
Once all preparations are complete, follow these steps to install your panel correctly.
Step 1: Prepare the Installation Area
- Turn off power at the main source to prevent electric shock.
- Mark the panel’s mounting location on the wall, ensuring proper height (typically 1–1.8 meters from the ground).
- Ensure compliance with local codes—avoid installing in restricted areas such as bathrooms.
Step 2: Mount the Panel
- Remove the panel cover and position the base on the wall.
- Use a level to ensure correct alignment.
- Secure the panel using screws or bolts.
- Feed the service wires into the panel, leaving enough slack for easy connections.
Step 3: Install the Circuit Breakers
- Begin with the main breaker and ensure a secure connection.
- Install individual branch circuit breakers, arranging them based on electrical load requirements.
- Use a connecting strip to link multiple breakers and tighten all terminal screws.
Step 4: Wire the Circuits
- Strip the insulation off wires and attach the phase (live) and neutral wires to their respective terminals.
- Securely connect the branch circuit wires to the appropriate breakers.
- Double-check each connection for tightness and accuracy.
Step 5: Establish Grounding
- Attach the grounding wire to the panel’s grounding bar.
- Ensure all individual circuits are also properly grounded.
- Confirm secure connections to prevent electrical hazards.
Step 6: Final Inspection and Activation
- Reattach the panel cover and ensure all gaps are closed.
- Label each circuit breaker for easy identification.
- Turn the power back on and test each circuit using a voltage tester.
6. Routine Maintenance for Electrical Panels
Regular maintenance is key to extending the lifespan of an electrical panel and ensuring safe operation.
🔍 Visual Inspection: Check for rust, burns, or loose components.
📊 Check the Meter: Monitor the panel’s energy consumption for discrepancies.
🚪 Ensure Clearance: Keep at least three feet of space around the panel.
⚡ Test Circuit Breakers: Flip each breaker off and on periodically to ensure proper function.
🧹 Dust Removal: Keep the panel exterior free of dust and debris to prevent overheating.
🔧 Annual Professional Inspection: Hire an electrician to inspect for hidden issues and loose connections.
7. Conclusion
Installing an electrical panel correctly enhances safety, improves electrical efficiency, and ensures the long-term functionality of your system. A proper installation process involves selecting the right panel, using quality materials, and following strict safety guidelines.
✔ Follow all safety protocols to prevent accidents.
✔ Choose a panel that meets your current and future needs.
✔ Perform regular maintenance to ensure optimal performance.
If you’re unsure about any step, consult a licensed electrician to guarantee compliance with regulations and ensure a safe installation.
