 Electrical Panel: A Complete Guide for Homeowners

Introduction
Electrical panels are an essential part of every residential, commercial, and industrial building, yet many homeowners don’t fully understand their role. Knowing how your electrical panel works—and how to maintain it—can protect your home from dangerous power outages and electrical fires. In this guide, we’ll walk you through the fundamentals of electrical panels, how to identify common issues, and tips for safe maintenance.


1. What is an Electrical Panel?

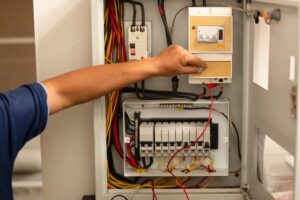

An electrical panel—also called a breaker box, distribution board, or service panel—is the control center of your home’s electrical system. It connects the external power supply from the utility company to your home’s internal wiring. Inside, circuit breakers (or fuses in older homes) distribute electricity to different areas of the house and provide overload protection by automatically shutting off power when necessary.


2. Why is the Electrical Panel Important?

The panel ensures the safe distribution of electricity throughout your home. When a circuit is overloaded, the breaker “trips” to prevent overheating, potential fires, or equipment damage. It also provides a manual way to shut off power during renovations or emergencies, significantly reducing the risk of electric shock.


3. How Does it Work?

Each circuit breaker controls a specific circuit or zone in your home. Small appliances typically run on single-pole breakers (120V, 15–30 amps), while larger devices like stoves or HVAC systems require double-pole breakers (240V, 15–50 amps). If a circuit draws too much current, the breaker trips and stops power flow until it’s reset manually.


4. What’s Inside the Panel?

  • Main Breaker: Controls all power into the home.

  • Circuit Breakers: Control power to individual circuits.

  • Labeling: Helps identify which breaker corresponds to which part of the house.

  • Expansion Slots: Allow for future circuit additions.

  • Fuses (in older homes): Must be replaced when blown.


5. Where to Find Your Panel

Panels are usually gray metal boxes located in basements, garages, utility rooms, or even outside in older homes. Look for a door-covered box with multiple switches inside. Some homes may also have sub-panels for additional areas like guest houses or workshops.


6. Installation Requirements

According to NEC (National Electrical Code), your panel should:

  • Have at least 3 feet of clearance in front.

  • Be installed 4 feet off the floor.

  • Be located in a dry, accessible place.

  • Allow the door to open to at least 90 degrees. Outdoor panels must be waterproof and corrosion-resistant.


7. Common Problems and Solutions

  • Tripping Breaker: Caused by circuit overload. Unplug some devices and reset the breaker.

  • Low Capacity: Frequent trips might indicate the need for a panel upgrade.

  • Corrosion: May indicate water ingress—have it inspected by a professional.

  • Short Circuit: Can be dangerous—turn off power and contact an electrician.

  • Ground Faults: Common in wet areas. GFCI outlets can help prevent these.


8. Panel Maintenance Tips

  • Keep the Area Clear: Maintain 36 inches of open space around the panel.

  • Visual Checks: Look for rust, burn marks, or loose wires.

  • Test Breakers Annually: Turn them off and back on to check function.

  • Schedule Professional Inspections: Every 3–5 years to ensure long-term safety and performance.


9. Conclusion

The electrical panel is the heart of your home’s electrical system. Understanding its components and basic operation is essential for every homeowner. Always prioritize safety—consult a certified electrician for repairs, upgrades, or if you suspect any issues.
